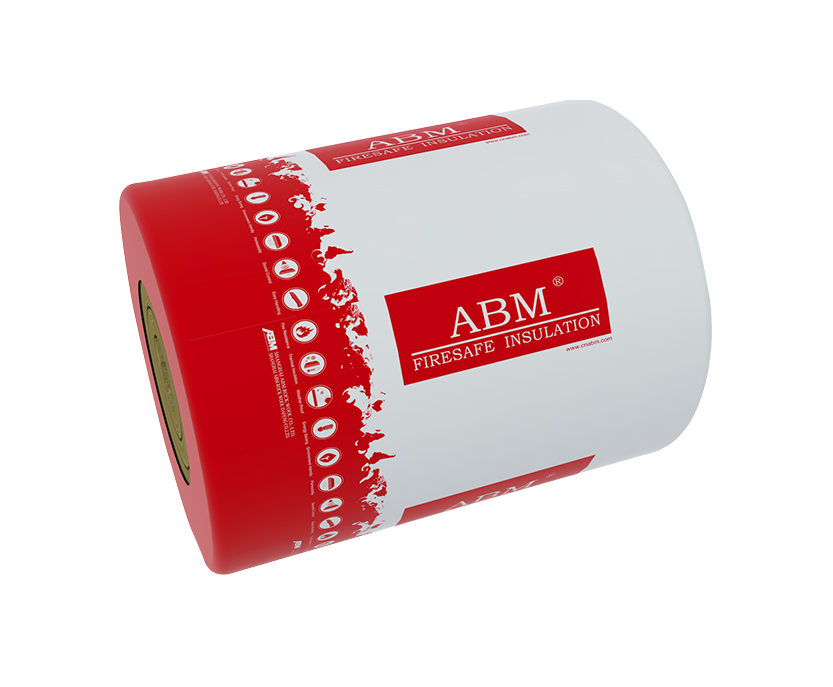

ABM? Multi-function Blanket (RL series) is mainly applied on steel structure wall and roof to preserve heat, absorb noise and improve the fire performance at the same time.
Product Type | RL 60 | RL 80 | RL 100 | |||||
Nominal Density, kg/m3 | 60 | 80 | 100 | |||||
Thickness, mm | 50 | 60 | 75 | 50 | 60 | 75 | 40 | 50 |
Length, mm | 5000 | 4000 | 3000 | 5000 | 4000 | 3000 | 5000 | 5000 |
Width, mm | 600， 1200 | |||||||
Properties | RL 60 | RL 80 | RL 100 | Unit | Test Method |
Thermal Conductivity(25℃) | ≤0.037 | W/(m?K) | GB/T 10295 | ||
Reaction to Fire | A1 | --- | GB 8624 | ||
Melting Temperature | ≥1000 | ℃ | --- | ||
Acidity Coefficient | ≥1.8 | --- | GB/T 5480 | ||
Water Repellence | ≥99 | % | GB/T 10299 | ||
Mass Moisture Absorption | ≤0.5 | % | GB/T 5480 | ||
Short-term Water Absorption (partial immersion, 24h) | ≤0.5 | kg/m2 | GB/T 30805 | ||
Dimensional Stability | ≤0.5 | % | GB/T 30806 | ||
Corrosiveness | Corrosion Free | --- | ASTM C665 | ||
Noise Reduction Coefficient（NRC） | ≥0.70 | --- | GB/T 18696 | ||
1.Purlin
2.Bottom Profiled Steel Sheet
3.Vapor Barrier Membrane
4.ABM Multi-function Blanket (RL series)
5.Inner Supporter
6.Water-proof And Vapor Permeable Membrane
7.Support Structure
8.Roof Panel
1.Column
2.Inner Metal Panel
3.Purline
4.Additional Column
5.ABM Multi-function Blanket (RL series)
6.Facing
7.Outer Metal Panel
8.Flashing Board
9.Roof Panel
